Waveshare 4 inch

The ESP32-S3-Touch-LCD-4B: 4 inch, 480 × 480, square.

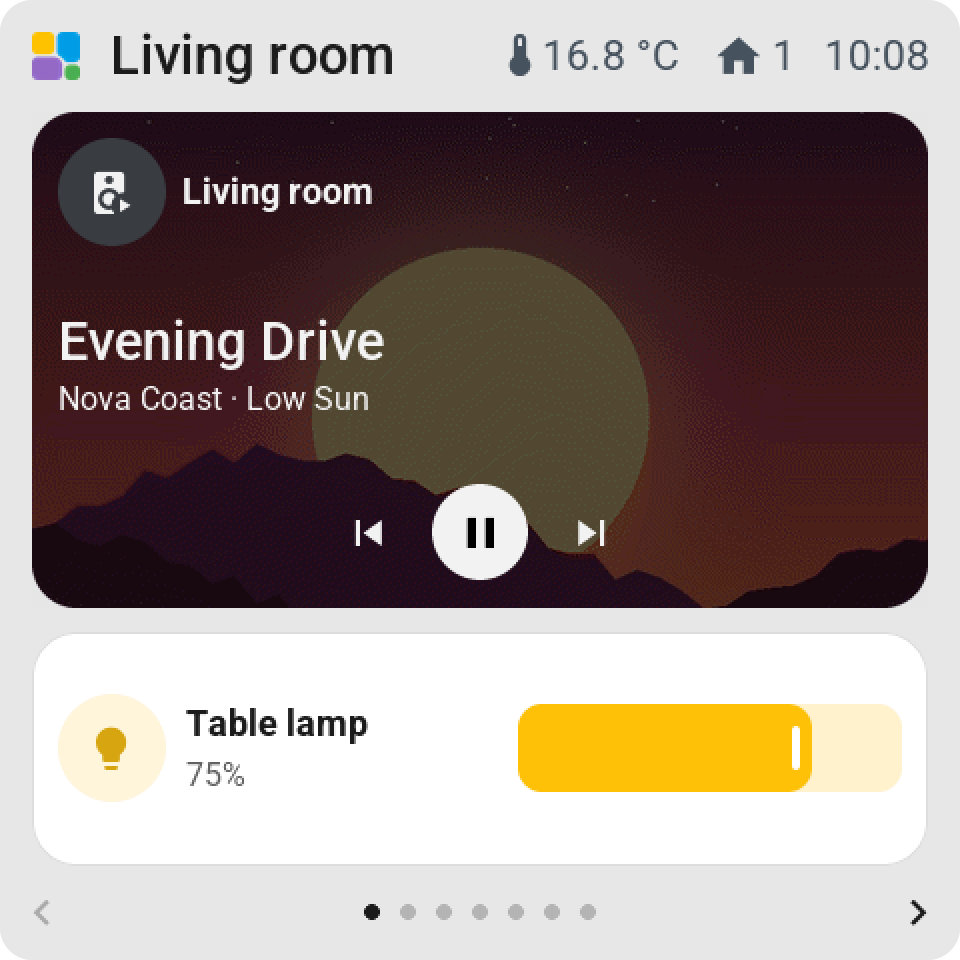

The Waveshare 4 inch

Suggested tiles per page6 (2 × 3)
TouchCapacitive (GT911)
BacklightDims; standby and night mode
PicturesYes
RotationA quarter turn at any time

The suggested grid can be changed after installation with Grid in the editor. See Change the grid.

Buying ​

The "B" matters: the older LCD-4 without it has other pins and doesn't work with this firmware.

Good to know ​

  • Runs from USB; the battery charger on the board is not used.
  • Two USB-C ports: one with a USB-to-serial chip for installing, one native.
  • Firmware before 0.6.1 showed a black screen after a cold start; update.

Current support status and owner reports.
