Guition 4 inch

The ESP32-S3-4848S040: 4 inch, 480 × 480, square. The screen the project uses itself.

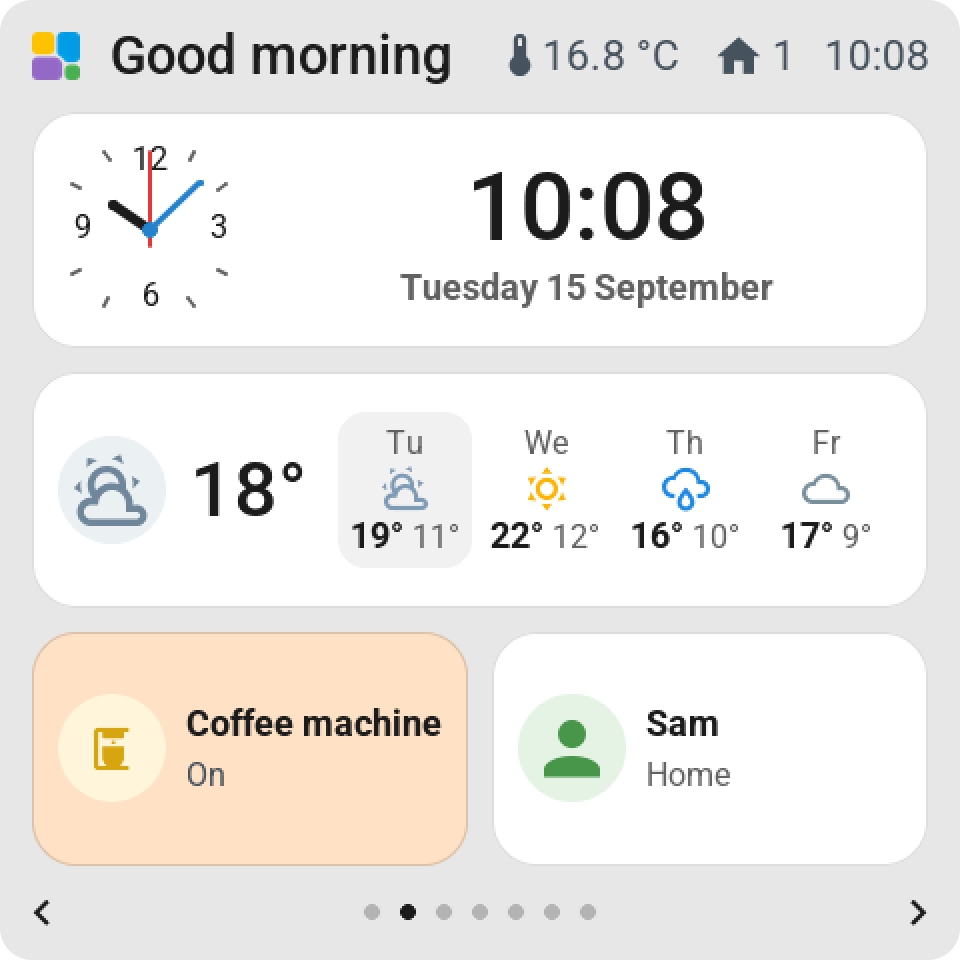

The Guition 4 inch

Suggested tiles per page6 (2 × 3)
TouchCapacitive (GT911)
BacklightDims; standby and night mode
PicturesYes
RotationA quarter turn at any time, since the glass is square

The suggested grid can be changed after installation with Grid in the editor. See Change the grid.

Buying ​

Search for ESP32-S3-4848S040 and check 480 × 480, ST7701S and a capacitive GT911 touch. It comes as an EU wall box; the base holds one or three relays. The Guition relays plugin can configure them; they are not enabled by the base screen profile. Mains wiring is for someone qualified.

Setting up ​

The suggested grid is 2 × 3. Use Grid beside the pages in the editor to change the columns and rows later. For example, 2 × 4 fits eight smaller tiles. Save the layout to apply it; no firmware build is needed.

Good to know ​

  • Below about 90 % brightness the picture looked off on firmware before 0.3.5; update if you still see it.
  • The relays can be added with Override YAML as GPIO switches; the board page in the repository, GUITION.md, has the pins.

Current support status and owner reports.
