Guition 7 inch

The JC1060P470 and its V2: 7 inch, 1024 × 600, with an ESP32-P4.

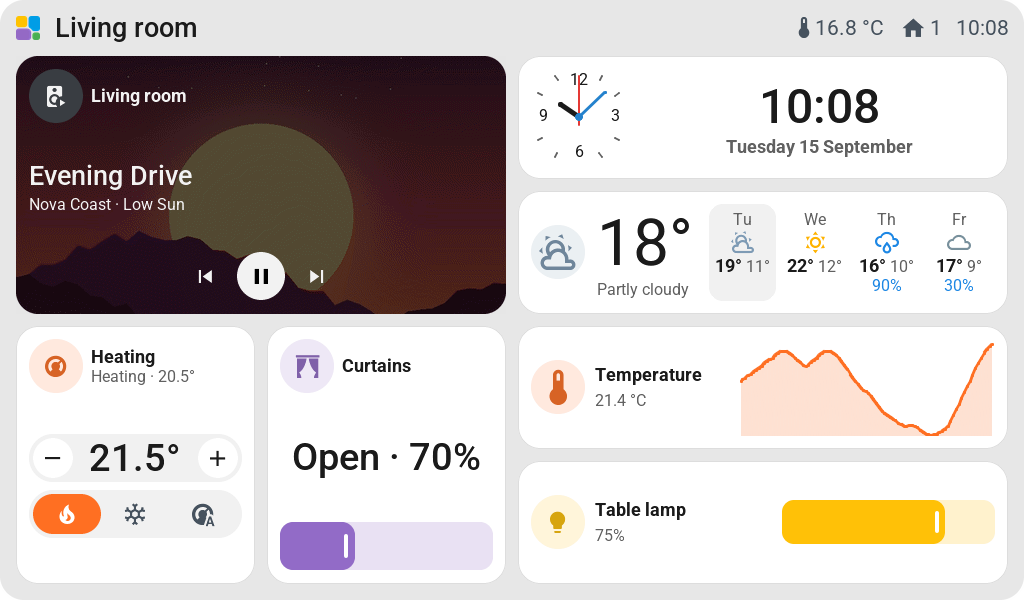

The Guition 7 inch

Suggested tiles per page16 lying down (4 × 4), 14 standing up (2 × 7)
TouchCapacitive (GT911)
BacklightDims; standby and night mode
PicturesYes

The suggested grid can be changed after installation with Grid in the editor. See Change the grid.

Which one do you have ​

Two revisions with a different display. The rear label says "V2" after the material number on boards made since about mid-2026. No label? The four-digit date code on the panel board behind the back cover: 2622 and later is a V2. Pick the matching model under New screen. A wrong choice does no harm: a V2 on the first firmware shows white with a band of noise, and you install again with the other.

Good to know ​

  • Nobody on the project has run this board on the glass yet; the firmware builds and renders. Please report.
  • A screen that won't start after a power cut needs firmware 0.3.4 or newer, once over USB.
  • Pixels are about 5 % wider than tall, so a circle reads a touch wide.

Current support status and owner reports.
