Waveshare 4.3 inch

The ESP32-S3-Touch-LCD-4.3: 4.3 inch, 800 × 480, the sharpest glass of the family.

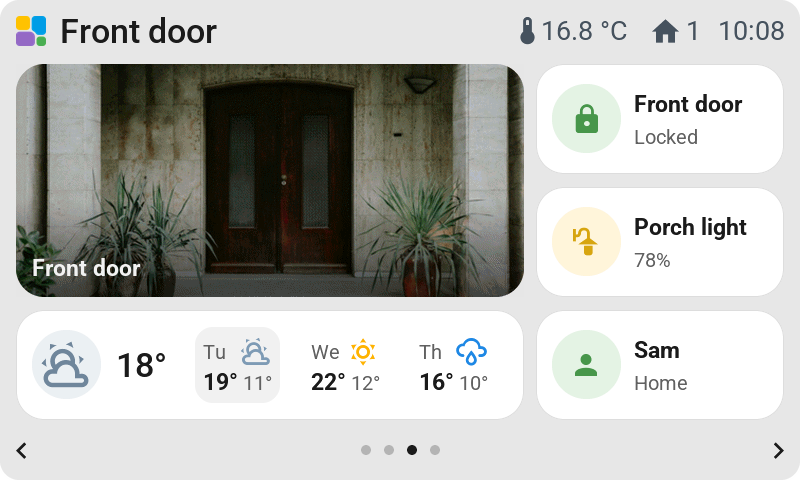

The Waveshare 4.3 inch

Suggested tiles per page9 lying down (3 × 3), 4 standing up (1 × 4)
TouchCapacitive (GT911)
BacklightOn or off only: no dimming, no standby, no night mode
PicturesYes

The suggested grid can be changed after installation with Grid in the editor. See Change the grid.

Always on ​

This board's backlight has no levels, and switching it on from dark drops the board's power so far that it restarts. So the screen stays lit, and has no brightness, standby, night or screensaver settings. An alert doesn't blink the backlight either. A community fix is a 470 µF capacitor on the 3V3 pins of the sensor connector; the firmware won't try it.

Good to know ​

The board logs over its own USB port, without a separate serial chip.

Current support status and owner reports.
